VoltEdge referenceVE-RP01-PWM

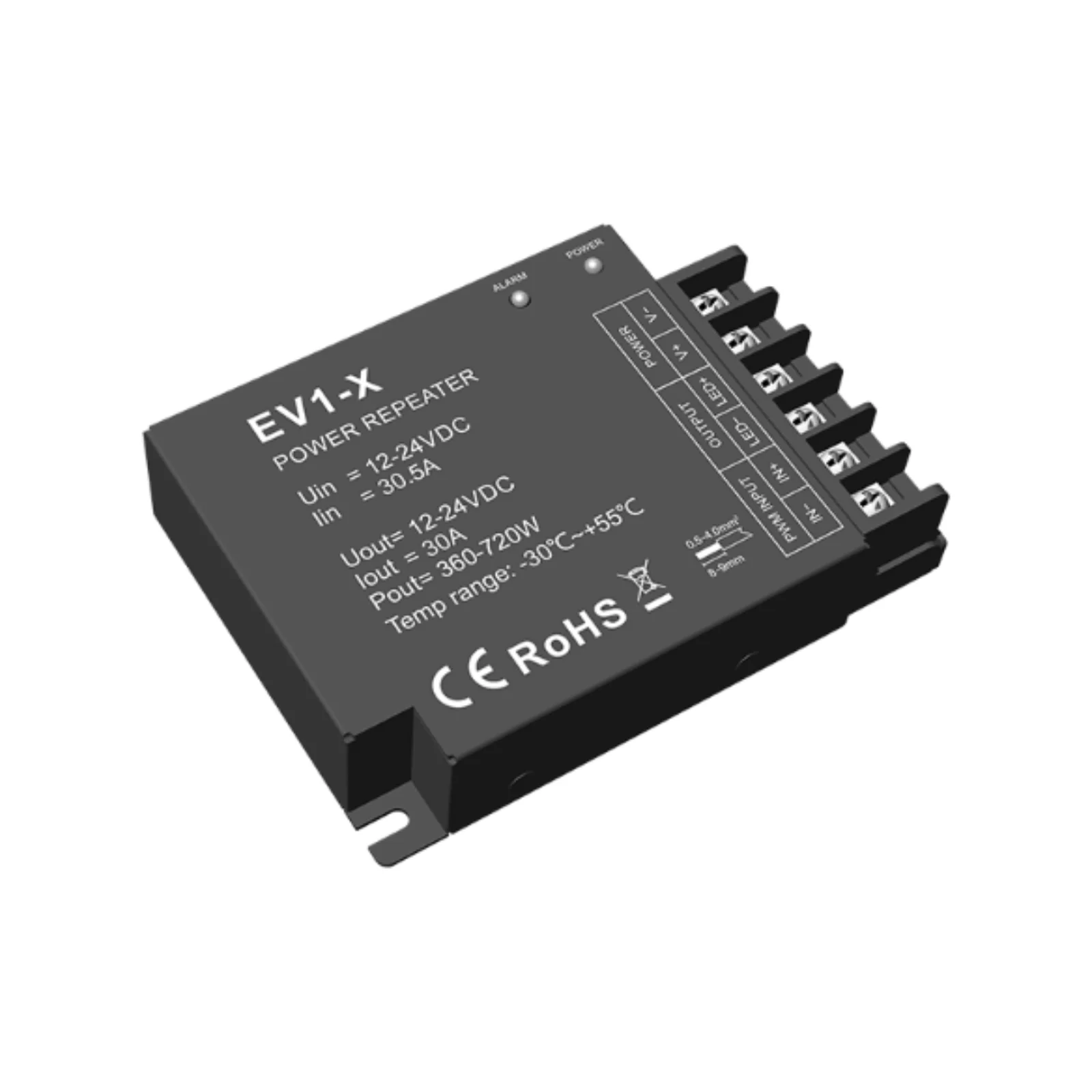

1-Channel Constant-Voltage Power Repeater
High-current single-channel PWM power repeater for expanding compatible constant-voltage single-color LED installations, with 3kV optoelectronic isolation.
Manufactured by Skydance
Skydance modelEV1-X
FamilySignal Repeaters
Technical documentPDF
VE-RP01-PWMKey product functions
Control architecture
- Single-channel constant-voltage output
- PWM signal input
- 30A output current
- 3kV optoelectronic isolation
- Series or parallel expansion
- Reverse-polarity, over-heat, over-load and short-circuit protection
Technical parameters
Input voltage12–24VDC
Input signalPWM
Output voltage12–24VDC
Output current30A
Output power360–720W
Output typeConstant voltage
IP ratingIP20
Dimensions120 × 90 × 30 mm
Typical supported uses
Applications
01
Single-color constant-voltage LED strips
02
Single-color LED modules
03
PWM-controlled power expansion
04
High-current lighting-control installations
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
