VoltEdge Professional Lighting Controls
VoltEdge referenceVE-RM04-RF

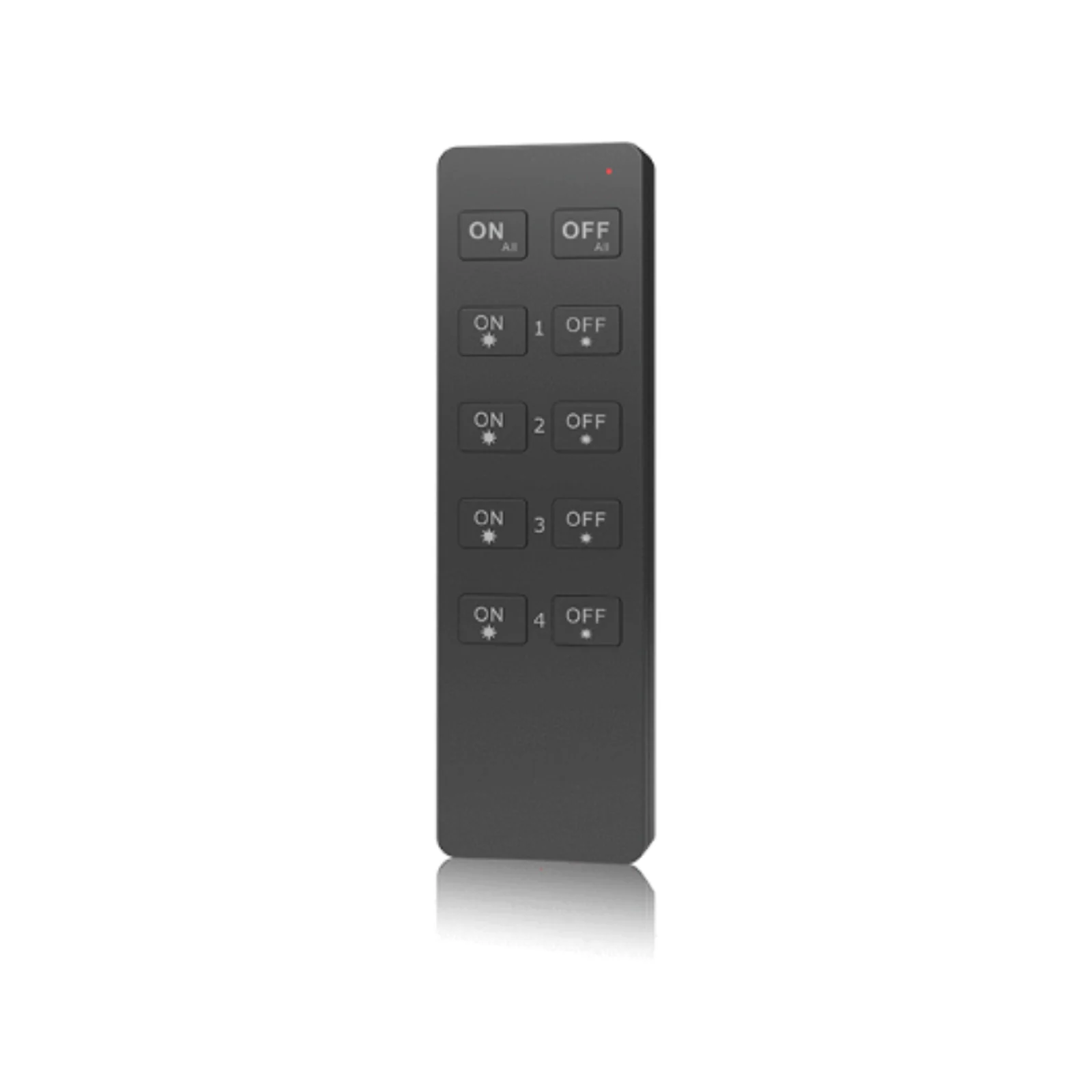

4-Zone RF Dimming Remote
Four-zone RF 2.4 GHz dimming remote for controlling compatible RF LED controllers, with individual zone on/off and brightness adjustment.
Manufactured by Skydance
Skydance modelRU4
FamilyRemote Controls
Technical documentPDF
VE-RM04-RFKey product functions
Control architecture
- Four-zone dimming control
- Individual zone on/off
- Press-and-hold brightness adjustment
- RF 2.4 GHz output
- CR2032 battery powered
- LED indicator
Technical parameters
Control zones4 dimming zones
Output signalRF 2.4 GHz
Working voltage3VDC, CR2032
Working current<5mA
Remote distance30m barrier-free
IP ratingIP20
Remote dimensions135 × 40 × 11 mm
Typical supported uses
Applications
01
Multi-zone RF dimming
02
Compatible single-color RF LED controllers
03
Room or area lighting-zone control
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
