VoltEdge referenceVE-LC04-WF

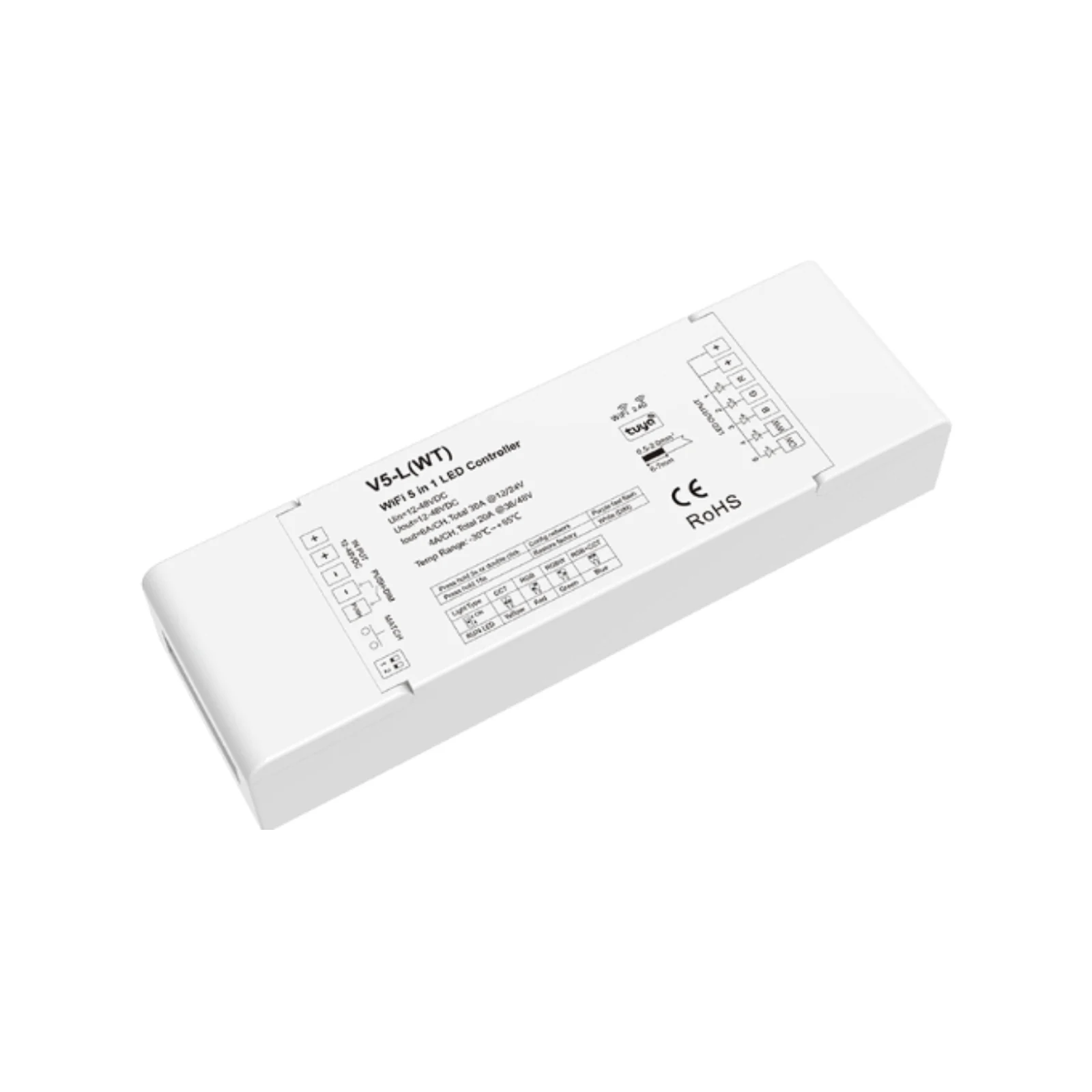

5-in-1 Wi-Fi & RF LED Controller
Five-channel constant-voltage controller supporting single-color, CCT, RGB, RGBW and RGB+CCT LED loads with Tuya smart control, RF 2.4 GHz and push-dim input.
Manufactured by Skydance
Skydance modelV5-L(WT)
FamilyLED Controllers
Technical documentPDF
VE-LC04-WFKey product functions
Control architecture
- 5-in-1 selectable light-type operation
- Five-channel constant-voltage output
- Tuya smart APP cloud control
- RF 2.4 GHz remote-control compatibility
- External push-dim control
- Selectable 500Hz / 2kHz / 8kHz / 16kHz PWM
- Reverse-polarity, short-circuit and over-heat protection
Technical parameters
Input voltage12–48VDC
Output voltage5 × 12–48VDC
Output current6A/channel @ 12–24V; 4A/channel @ 36–48V
Supported light typesSingle color / CCT / RGB / RGBW / RGB+CCT
Dimming range0–100%
Dimming levels4096 levels
RF control distance30m barrier-free
PWM frequency500Hz / 2kHz / 8kHz / 16kHz selectable
IP ratingIP20
Dimensions187 × 60 × 40 mm
Typical supported uses
Applications
01
Single-color LED strips
02
Tunable-white / CCT strips
03
RGB and RGBW strips
04
RGB+CCT strips
05
Multi-mode connected LED control
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
