VoltEdge Professional Lighting Controls
VoltEdge referenceVE-LC03-WF

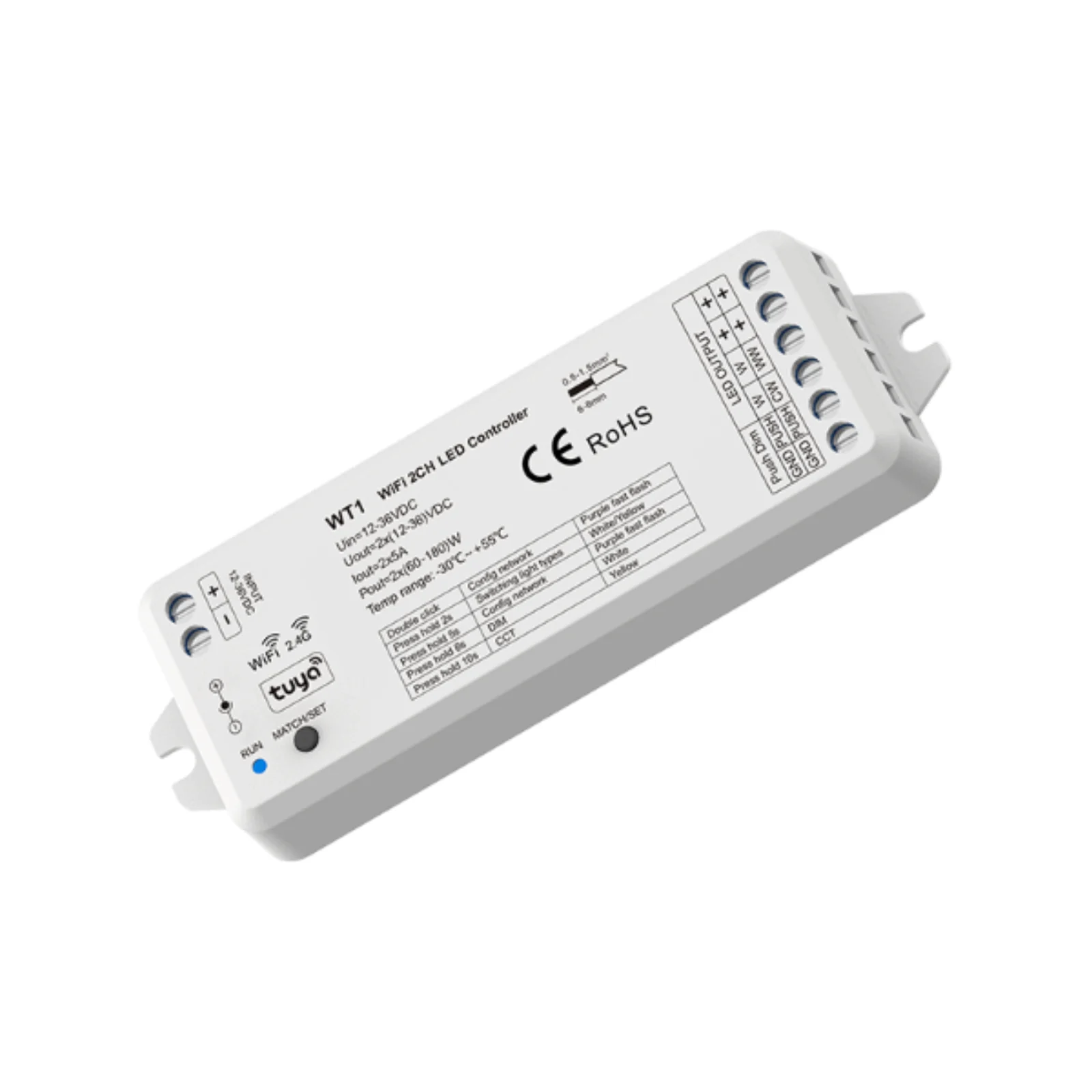

2-Channel Wi-Fi & RF LED Controller
Two-channel constant-voltage LED controller for single-color or tunable-white CCT LED loads, with Tuya smart control, RF 2.4 GHz and push-dim input.
Manufactured by Skydance
Skydance modelWT1
FamilyLED Controllers
Technical documentPDF
VE-LC03-WFKey product functions
Control architecture
- Single-color or CCT operating modes
- Two constant-voltage output channels
- Tuya smart APP cloud control
- RF 2.4 GHz remote-control compatibility
- External push-dim control
- 4096-level dimming
- Reverse-polarity, over-heat and short-circuit protection
Technical parameters
Input voltage12–36VDC
Output voltage2 × 12–36VDC
Output current2 channels, 5A/channel
Output power2 × 60–180W
Dimming range0–100%
Dimming levels4096 levels
PWM frequency2000Hz default
RF control distance30m barrier-free
Dimensions120 × 43 × 35 mm
Typical supported uses
Applications
01
Single-color LED strips
02
Tunable-white / CCT LED strips
03
Connected CCT lighting
04
RF and push-controlled LED lighting
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
