VoltEdge Professional Lighting Controls
VoltEdge referenceVE-LC02-WF

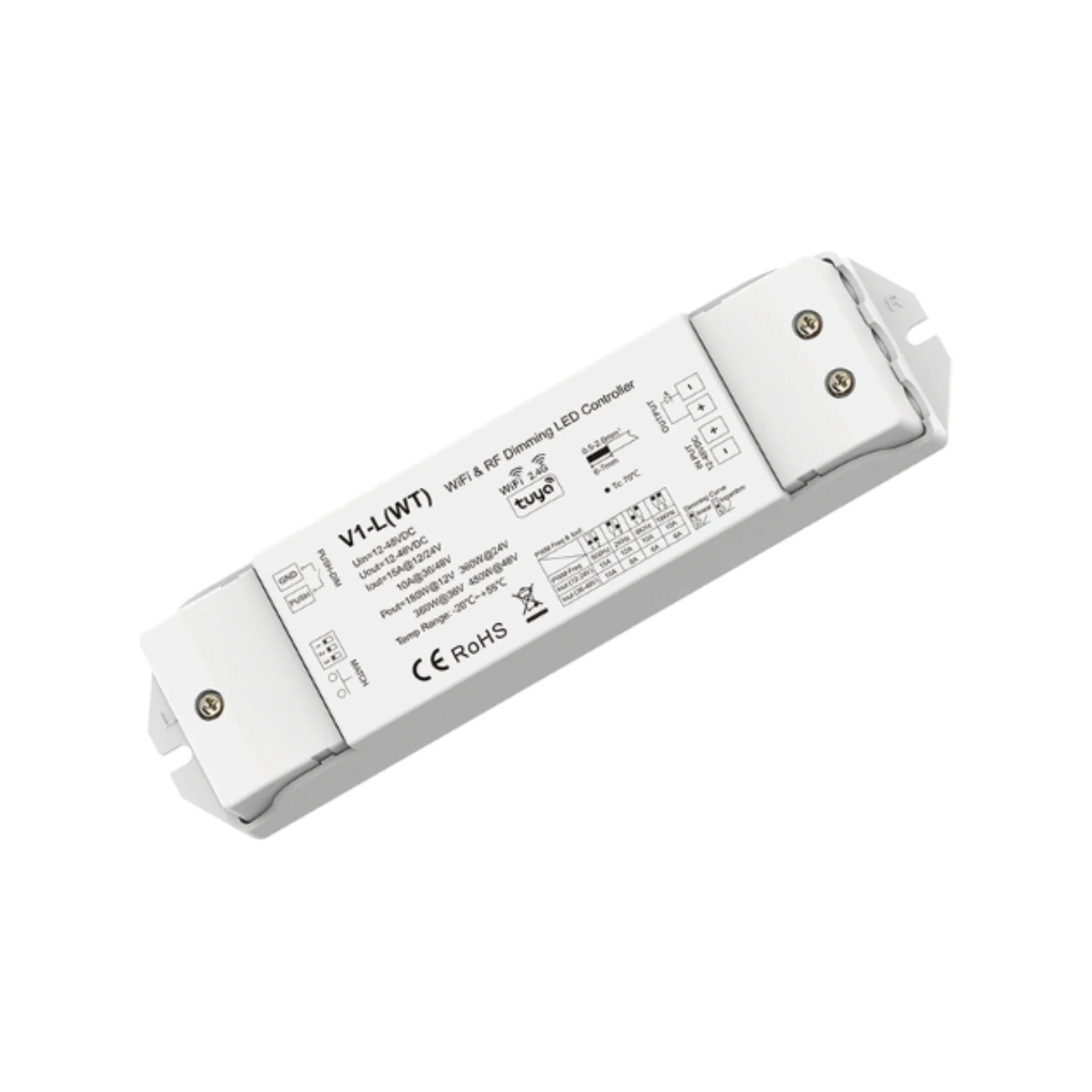

High-Power 1-Channel Wi-Fi & RF LED Controller
High-current single-channel constant-voltage LED controller with Tuya smart control, RF 2.4 GHz and push-dim input for single-color LED loads.
Manufactured by Skydance
Skydance modelV1-L(WT)
FamilyLED Controllers
Technical documentPDF
VE-LC02-WFKey product functions
Control architecture
- Single-channel constant-voltage output
- Tuya smart APP cloud control
- RF 2.4 GHz remote-control compatibility
- External push-dim control
- Selectable PWM frequency
- Linear or logarithmic dimming curve
- Reverse-polarity, short-circuit and over-heat protection
Technical parameters
Input / output voltage12–48VDC
Output current15A @ 12/24V; 10A @ 36/48V
Output power180W @ 12V; 360W @ 24V; 360W @ 36V; 480W @ 48V
Dimming range0–100%
Dimming levels4096 levels
RF control distance30m barrier-free
PWM frequency500Hz / 2kHz / 8kHz / 16kHz
IP ratingIP20
Dimensions178 × 50 × 38 mm
Typical supported uses
Applications
01
Higher-power single-color LED strips
02
Constant-voltage LED modules
03
Connected LED dimming
04
RF and push-controlled LED lighting
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
