VoltEdge referenceVE-LC01-WF

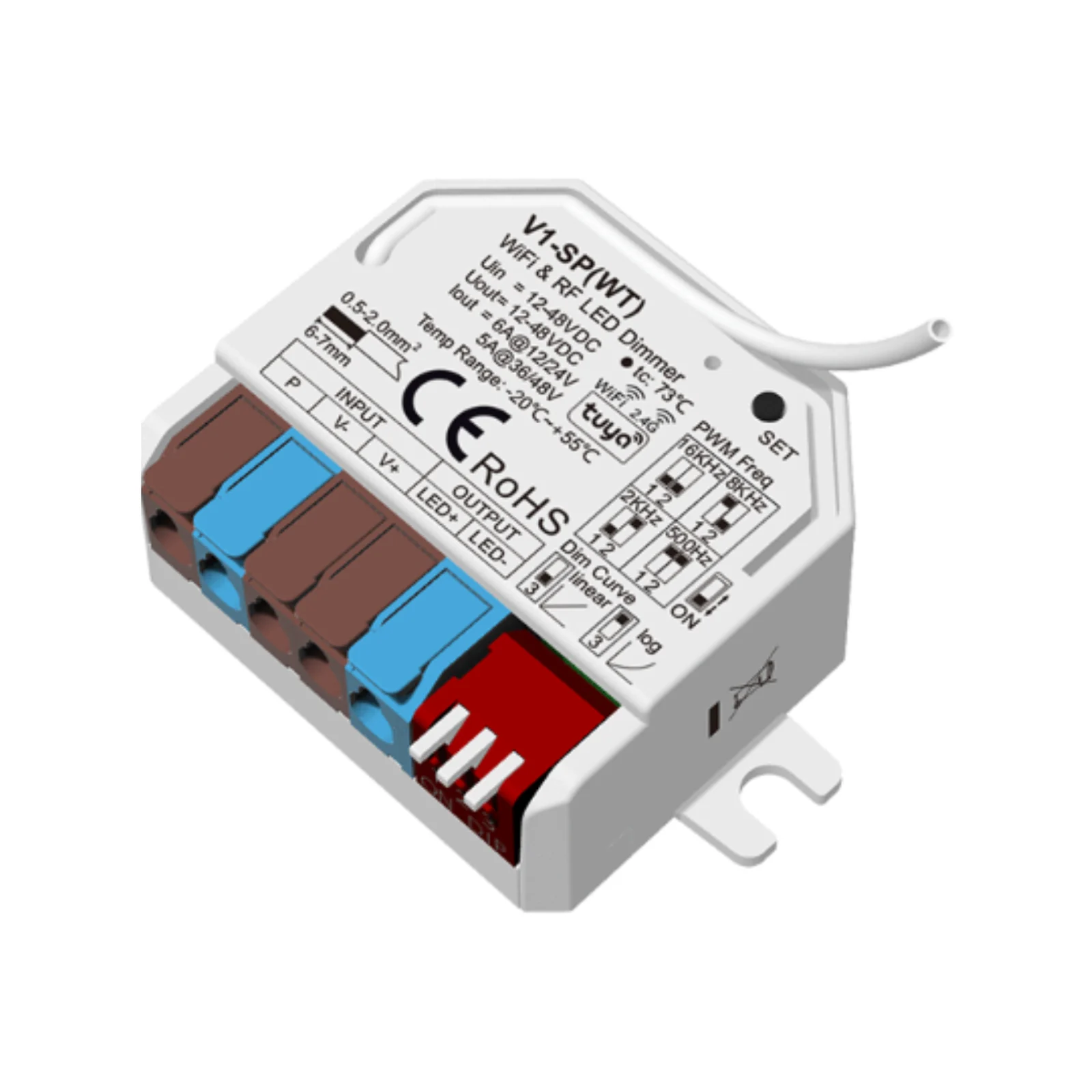

Compact 1-Channel Wi-Fi & RF LED Controller
Compact single-channel constant-voltage LED controller with Tuya smart control, RF 2.4 GHz and push-dim input for single-color LED loads.
Manufactured by Skydance
Skydance modelV1-SP(WT)
FamilyLED Controllers
Technical documentPDF
VE-LC01-WFKey product functions
Control architecture
- Single-channel constant-voltage output
- Tuya smart APP cloud control
- RF 2.4 GHz remote-control compatibility
- External push-dim control
- Selectable 500Hz / 2kHz / 8kHz / 16kHz PWM
- Linear or logarithmic dimming curve
- Reverse-polarity, over-heat and short-circuit protection
Technical parameters
Input / output voltage12–48VDC
Output current6A @ 12/24V; 5A @ 36/48V
Output power72W @ 12V; 144W @ 24V; 180W @ 36V; 240W @ 48V
Dimming range0–100%
Dimming levels4096 levels
RF control distance30m barrier-free
PWM frequency500Hz / 2kHz / 8kHz / 16kHz
IP ratingIP20
Dimensions60 × 60 × 40 mm
Typical supported uses
Applications
01
Single-color constant-voltage LED strips
02
Single-color LED modules
03
Connected LED dimming
04
RF and push-controlled LED lighting
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
