VoltEdge Professional Lighting Controls

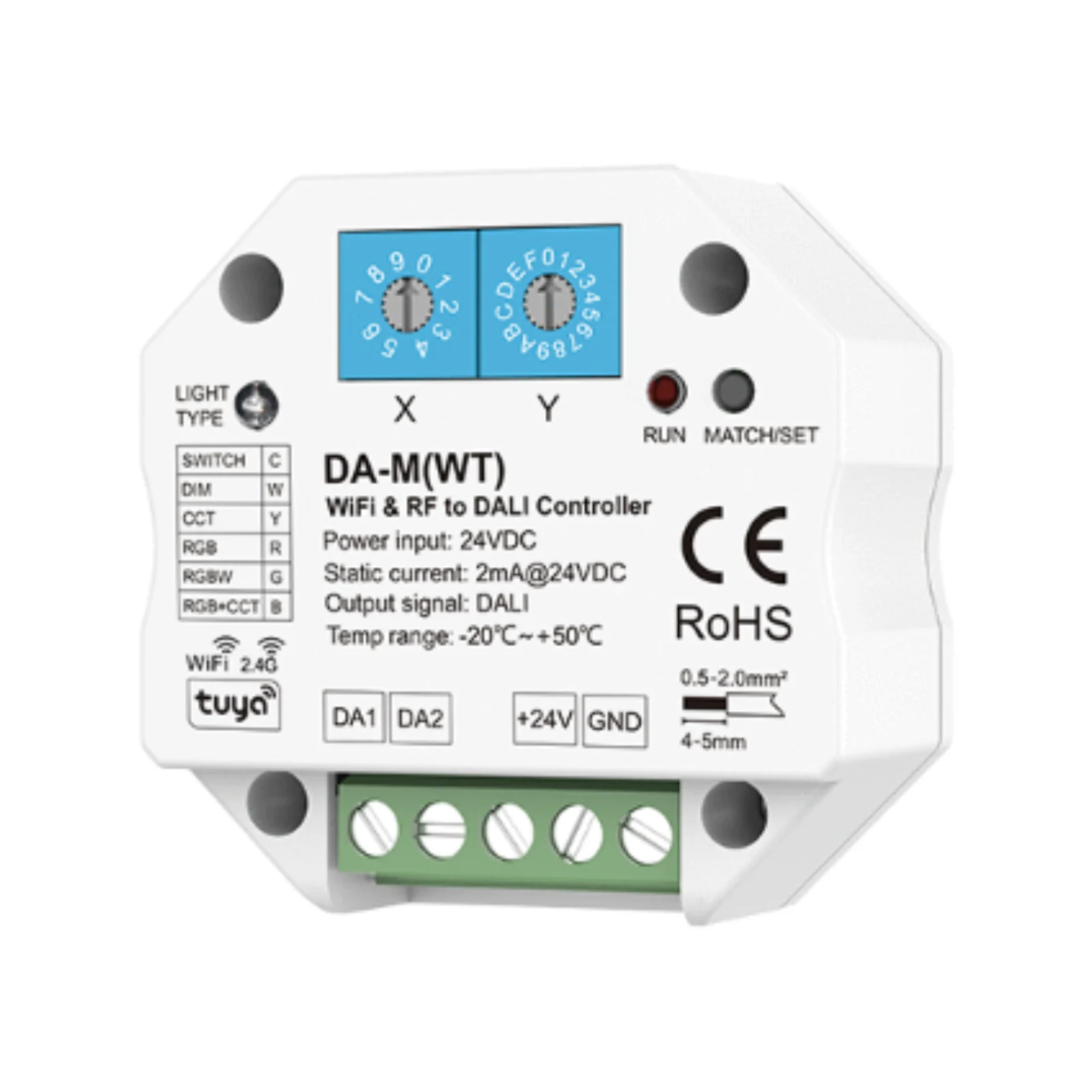

VoltEdge referenceVE-DG01-WF
Wi-Fi & RF to DALI Gateway
Tuya Wi-Fi and RF 2.4 GHz gateway for DALI lighting control, supporting multiple light types and DALI addressing modes for project integration.
Manufactured by Skydance
Skydance modelDA-M(WT)
FamilyGateways
Technical documentPDF
VE-DG01-WFKey product functions
Control architecture
- Tuya smart APP cloud control
- RF 2.4 GHz remote-control compatibility
- DALI output
- Supports DT6 dimming, DT7 switch and DT8 color-control modes
- Unicast, group and broadcast addressing
- Six selectable light-control types
The Wi-Fi version requires a 24VDC power supply and is not powered from the DALI bus.
Technical parameters
Power input24VDC external supply
Static current2mA @ 24VDC
Input signalWi-Fi + RF 2.4 GHz
Output signalDALI
DALI functionsDT6 dimming; DT7 switch; DT8 TC / RGB / RGBW
RF control distance30m open / barrier-free
IP ratingIP20
Dimensions60 × 60 × 40 mm
Typical supported uses
Applications
01
DALI lighting-control integration
02
Tuya-to-DALI projects
03
RF-to-DALI control
04
DALI dimming and color-control systems
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
