VoltEdge referenceVE-AD02-WF

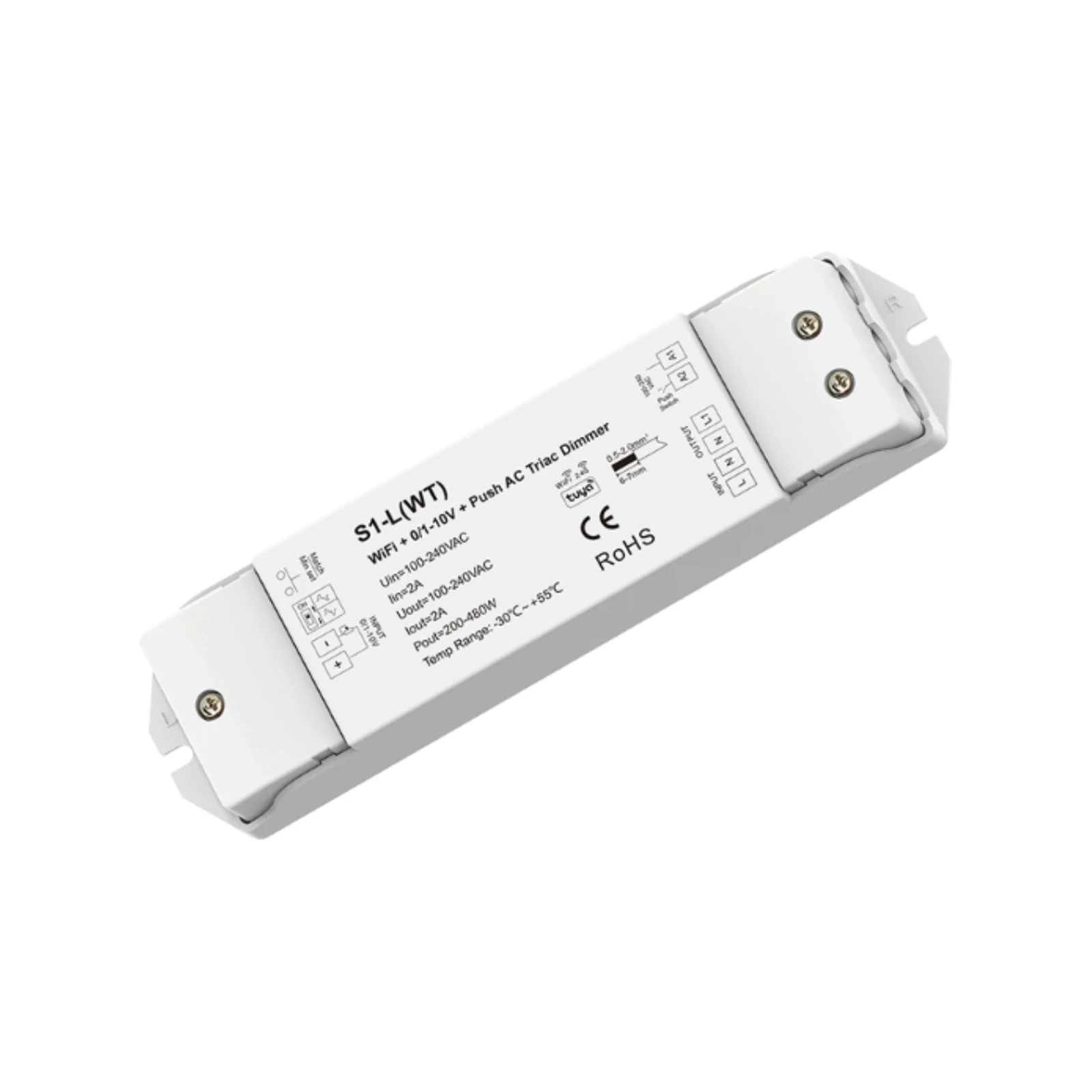

1-Channel AC TRIAC Dimmer with 0/1-10V Input
Single-channel AC phase-cut dimmer combining Tuya smart control, RF 2.4 GHz, push control and compatibility with active or passive 0/1-10V dimming inputs.
Manufactured by Skydance
Skydance modelS1-L(WT)
FamilySmart Dimmers
Technical documentPDF
VE-AD02-WFKey product functions
Control architecture
- Tuya smart APP cloud control
- Compatible with active or passive 0/1-10V dimmer input
- RF 2.4 GHz remote-control compatibility
- External push control
- Leading-edge or trailing-edge phase-cut selection
- Over-heat protection
Technical parameters
Input voltageAC100–240V
Output voltageAC100–240V
Output current2A
Output power200–480W
Dimming range0–100%
Dimming levels256 levels
RF control distance30m barrier-free
IP ratingIP20
Dimensions178 × 50 × 38 mm
Typical supported uses
Applications
01
Dimmable LED lamps
02
TRIAC dimmable LED drivers
03
Incandescent lighting
04
HV halogen lamps
05
0/1-10V-controlled phase-cut dimming
Technical documentation
Product technical PDF
Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.
