VoltEdge Professional Lighting Controls
VoltEdge referenceVE-AD01-WF

1-Channel 0/1-10V Wi-Fi & RF Dimmer

Single-channel 0/1-10V control dimmer for compatible 0-10V or 1-10V dimmable drivers, with Tuya smart control, RF 2.4 GHz and external push-dim input.

Manufactured by Skydance
Skydance modelL1(WT)
FamilySmart Dimmers
Technical documentPDF

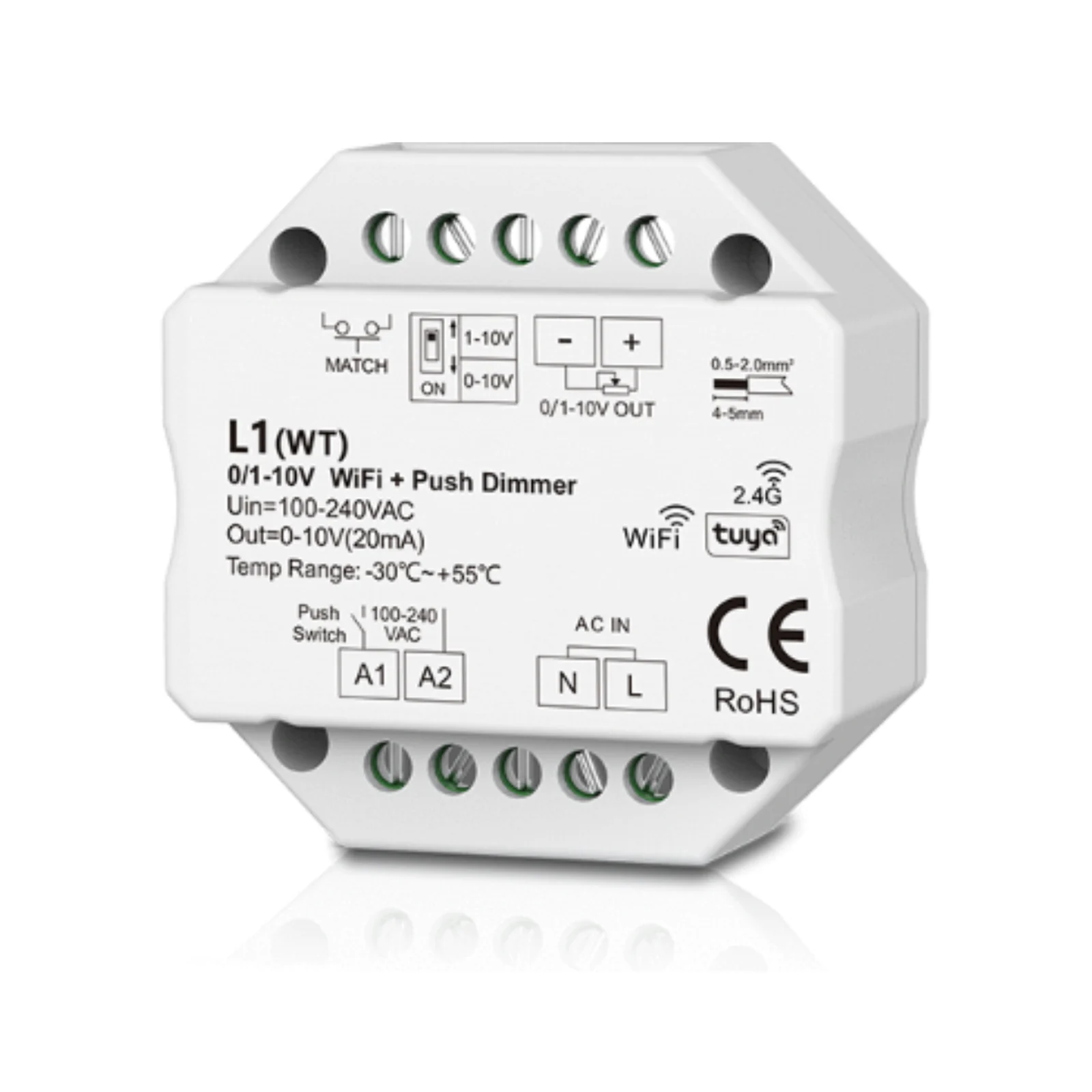

VE-AD01-WF 1-Channel 0/1-10V Wi-Fi & RF Dimmer, manufactured by Skydance (L1(WT))VE-AD01-WF
← Back to Professional Lighting Controls
Key product functions

Control architecture

  • Selectable 0-10V or 1-10V output
  • Tuya smart APP cloud control
  • RF 2.4 GHz remote-control compatibility
  • External push-dim control
  • 0–100% dimming
  • Designed for standard wall junction-box mounting
Technical parameters
Input voltageAC100–240V
Output signal0/1-10V, 20mA
Dimming range0–100%
Dimming levels256 levels
RF control distance30m barrier-free
IP ratingIP20
Dimensions52 × 52 × 26 mm
Typical supported uses

Applications

01

0-10V dimmable LED drivers

02

1-10V dimmable LED drivers

03

Wall-box lighting control

04

Connected dimming applications

Technical documentation

Product technical PDF

Access the Skydance technical document for this model, including technical parameters, wiring or connection information and operating guidance.

PDF

Technical Document

Technical information for Skydance model L1(WT), including specifications, wiring and operating guidance.

ManufacturerSkydance
ModelL1(WT)
Open PDF ↗
